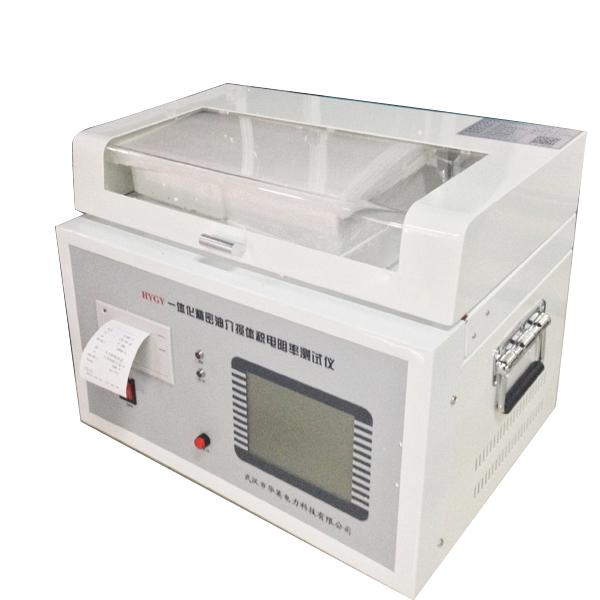

HYGY Insulating oil tan delta tester

HYGY Digital Automatic Dielectric Dissipation Factor Tester is a high-precision
instrument, which can be applied to measure dielectric loss angle and Volume Resistivity of
insulating oil etc.

It is integrated by oil cup for dielectric loss, temperature-control equipment,
temperature sensor, test-bridge for dielectric loss, AC trial electrical source, standard capacitor,
high resistance meter and DC high-voltage power etc.

The most advanced heating mode ofhigh frequency induction is applied to the heating part of this instrument, which has theadvantage of non-contact of oil cup and heating unit, homogeneous heating, quick velocity and
convenient control etc.

AC-DC-AC conversion mode is applied to AC trial electrical source so
that the problem how to measure correctly under the fluctuation of voltage and frequency can
be avoided. Even when the electric generator is working, the instrument can operate correctly.

The inner standard capacitor is SF6 three-pole inflate capacitor, whose dielectric loss and

capacitance is not influenced by environmental temperature and dampness etc. In this way, the
accuracy of the instrument is guaranteed conformably after a long-time application.
